home >> products >> Commercial Grade PET Type Reflective Sheeting CA3100

Commercial Grade PET Type Reflective Sheeting CA3100

Product Details:
Select Payment and Shipping Terms:
Min. Order Quantity:
20 Roll/Rolls
Place of Origin:
Min. Order:
FOB Price:
USD 1.70-1.95 /Square Meter
Shipping Terms:
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
450000 Square Meter/Square Meters per Month
Delivery Time:
1 roll/ctn

Detailed Product Description

Product Description

YILLUMAX™ Commercial Grade Reflective Sheeting Ad-applied type CA3100 Series

YILLUMAXTM Commercial Grade Reflective Sheeting CA3100 Series are designed for non-specification signage requirements widely used as construction and temporary traffic signage such as off-road signage and parking lots and ink-jet printing outdoor advertising applications as well. It is weatherproof, self-adhesive retroreflective films with an excellent corrosion and solvent resistance.

YILLUMAXTM Commercial Grade Reflective Sheeting CA3100 Series are typically an enclosed lens glass-bead sheeting, pressure sensitive adhesive-coated sheet with an easy release liner. The smooth surface shows a high scratch resistance and impact strength, and intended for production of temporary signage and pressure sensitive stickers which have the same appearance in the daytime and at night when viewed by retro-reflected vehicle lights.


PET Material
Meet With Standard: ГОСТ Р GOSTR 52290 Class A, Russia; JIS Z 9117 1-B-b, Japan; L-S-300C Table IV, USA
Lens glass-bead embedded technology
Pressure Sensitive Adhesive
Color: White, Yellow, Red, Blue, Green, Brown, Black, Orange
Adhesive Color: Clear
Service Life: 3 years
Imaging Method: Screen Print: Not recommended or independent testing required. Latex/Offset Print: Independent testing required,
user assumes responsibility for fitness of use for Latex or Offset. Inkjet Print: Not recommended.
Application Substrates: New PVC Curtains or Pre-cleaned hard surface such as Aluminum, Metal, etc. (Wood, plastic, rubber boards
are not recommended, user assumes responsibility for fitness of use for wood, plastic, rubber)
Recommended Applications: Plotter Cutting, Decals, Fleet without Rivets
Application Temperature: at temperatures of 18°F(65°F)-30°C(86°F)

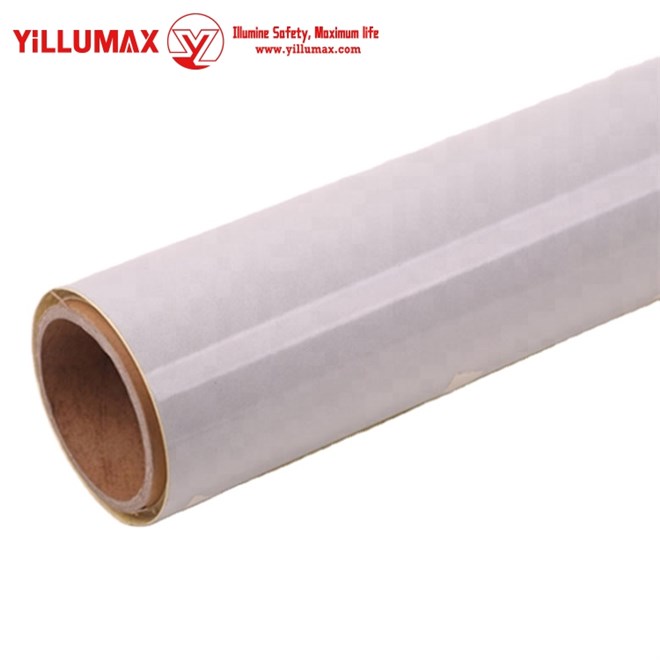

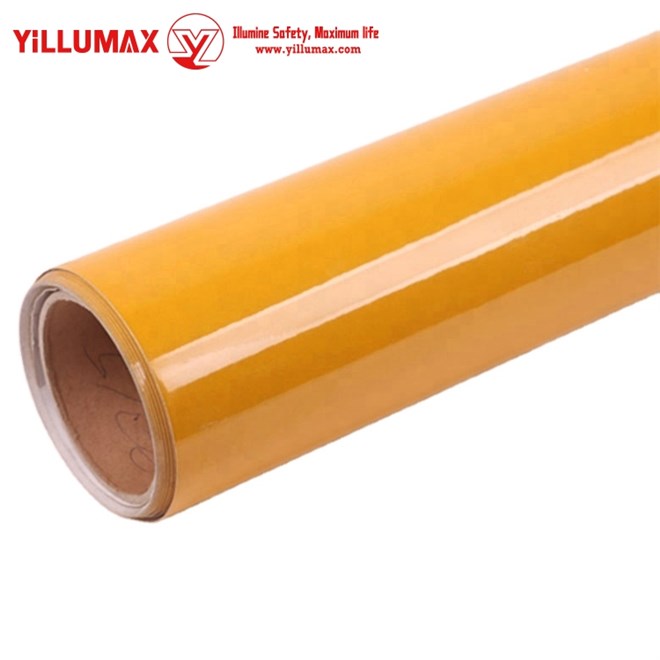

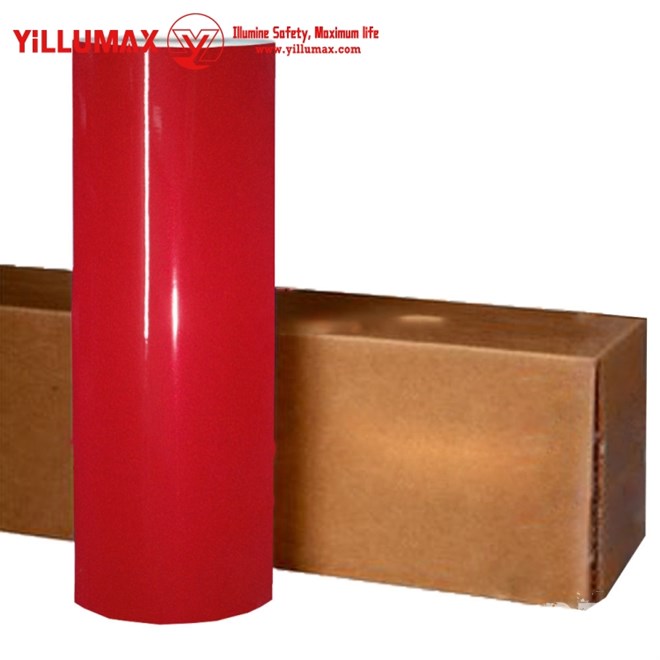

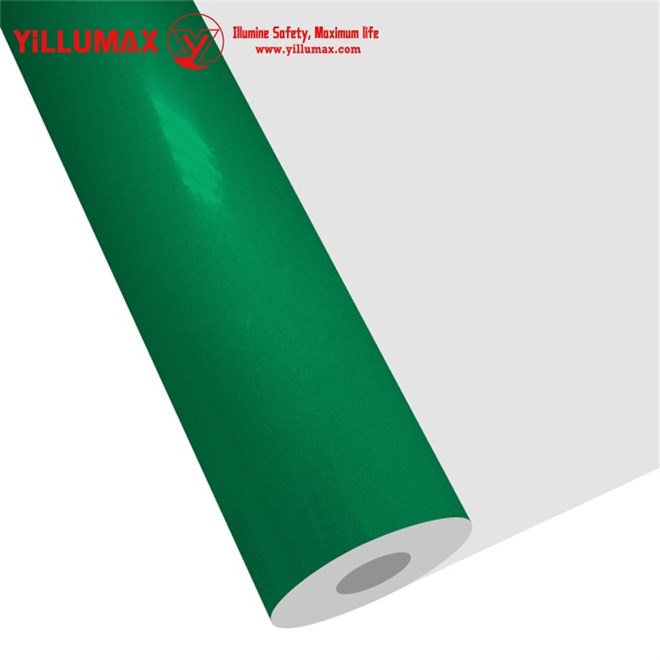

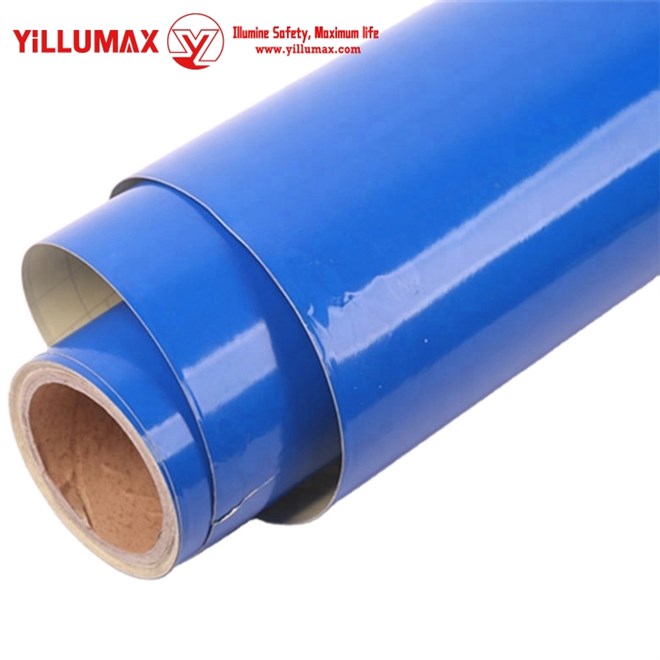

Series CA3100 reflective sheeting is available in the following colors:

Reflective Performance

YillumaxTM Reflective Sheeting meet the minimum coefficient of retroreflection(RA) cd/fc/ft2(cd.lx-1.m-2) in BS873 Class 3 standard.


* AD industry: large format billboard, street banner, wall AD, light box, bus shelter, subway advertisements, light box, X banners, marketplace advertisement, roadside advertisement etc.
* Safety area: vehicle marking, bumper stickers, vehicle conspicuity marking tape, traffic signage, reflective crashworthy barrel, temporary work signs, industrial safety sign, fence AD etc.
* Interior & exterior signs.
* Window (glass wall) advertising.
* Temporary promotional and point of sale advertising
* Vehicle advertising/graphics
* Exhibition graphics

Signs that require cleaning should be flushed with water, then washed with a detergent solution and bristle brush or sponge. Avoid pressure that may damage the sign face. Flush with water following washing. Do not use solvents to clean signs.

Store in a cool, dry area and use within one year after date of receipt. Store rolls in original shipping carton or suspend horizontally from a rod or pipe through the core. Store sheets flat. Store color printed, pre-masked markings at a temperature below 29.5°C (85 °F). If stored above this temperature, blocking of the premask to the sheeting could occur.

Shelf Life
Unprinted sheet may be stored by the fabricator for a period of up to one year and after printing, markings may be stored for an additional period of up to six months. Sheeting and markings must be stored in a clean area, free from excessive moisture and direct sunlight, with ambient temperatures of 85 Fahrenheit or less.

General Performance Considerations
The performance and durability of Reflective Sheeting will depend upon a number of factors including (but not limited to):
Selection, preparation and temperature of the substrate
Application procedures
Geographic area
Exposure and atmospheric conditions (e.g. snow, frost)
Correct combination of sheeting, ink and overlay film
Ink formulation
Ink drying/curing methods
Cleaning and maintenance method
